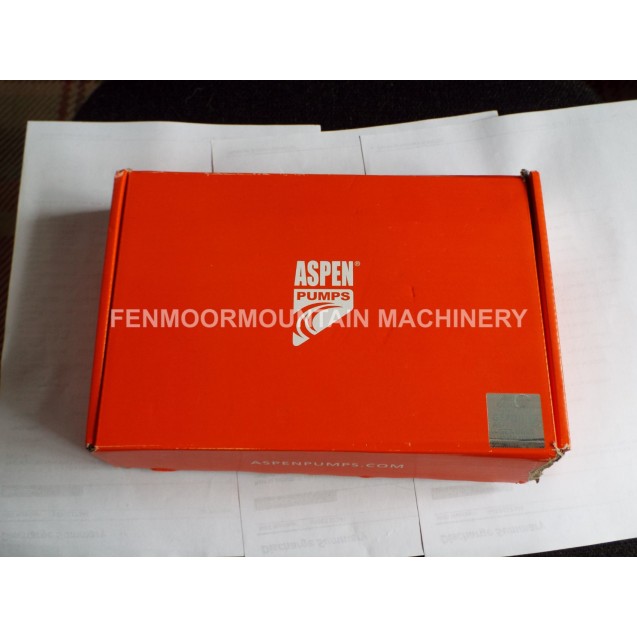

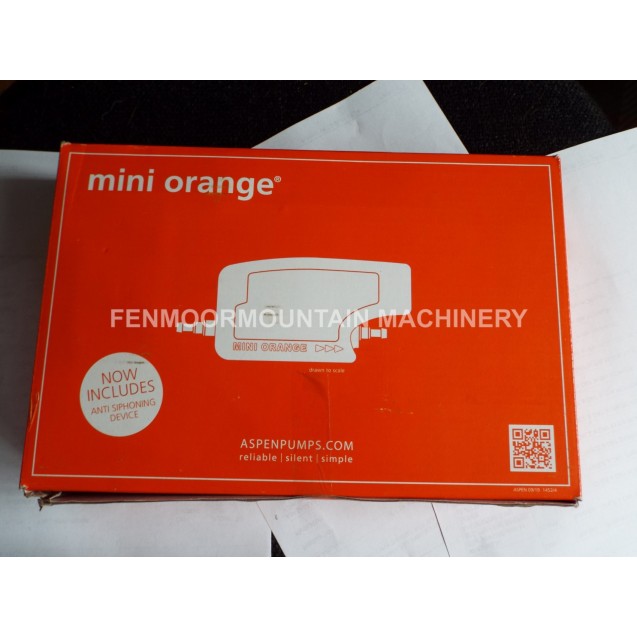

Mini Orange aspen Condenstae pump, from our own stock inventory  Item is new, complete an dunused, Outer cardboard box may be scruffy.

Mfr spec:

Aspen Mini Orange Condensate Pump

The Aspen Mini Orange Pump features a float switch mechanism that detects water in the drain pan and activates the pump for efficient condensate removal.

Designed for smaller commercial and domestic units, the Mini Orange Pump is ideal for high-wall split systems, ducted units, floor-standing units, and chassis units.

Its compact design ensures seamless integration while providing reliable and high-performance operation in demanding environments.

Included in your pump box is:

• Aspen Mini Orange Condensate Pump

• 1.5m Plug & play power cable

• Reservoir

• Reservoir lid with 1.5m sensor cable

• Submersible reservoir

• Anti siphon device

• Float & filter

• 1.5m Suction tube 6mm ID

• 220mm Orange inlet hose 14mm ID

• 150mm Vinyl breather tube 6mm ID

• Drain connector kit

• Fixing kit

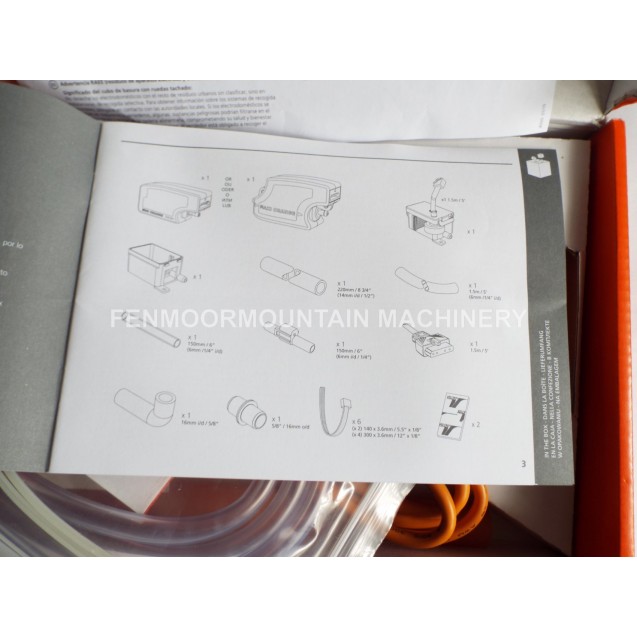

• Install manual

Technical Specifications

• 1PH 50 Hz

• 3A volt-free alarm wires, N.O, N.C. contacts rated @ 5A inductive at 230V

• Hall effect semi conductor level sensors, with high level safety

• Fully potted

• Thermally protected

• CE marked

• Power supply: 230V AC < 16W

• Water flow rate: 12L/hour at zero head

• Maximum recommended head:
  10 metres

• 23dB(A) @ 1 metre

Part Number

FP2212 Brand Aspen
